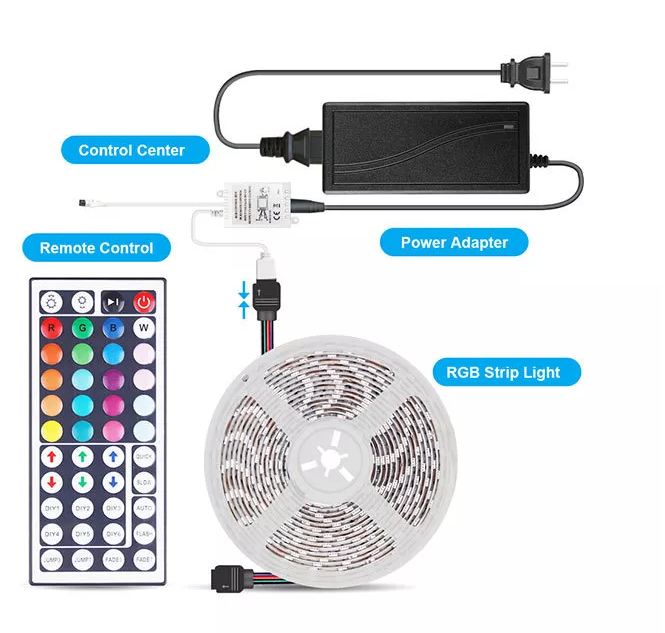

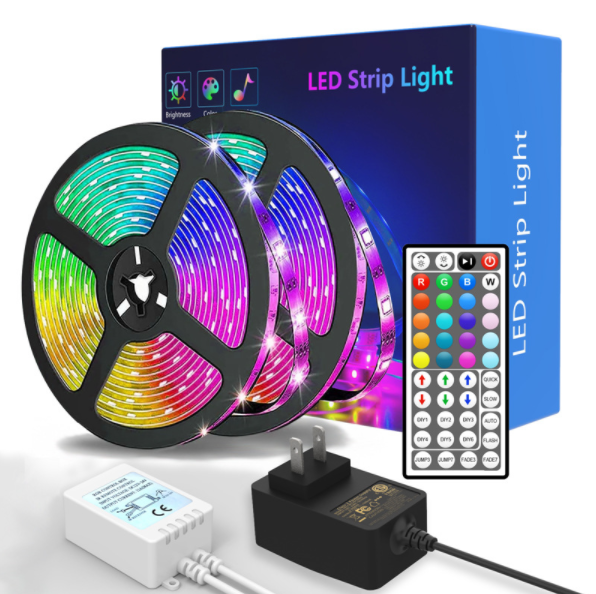

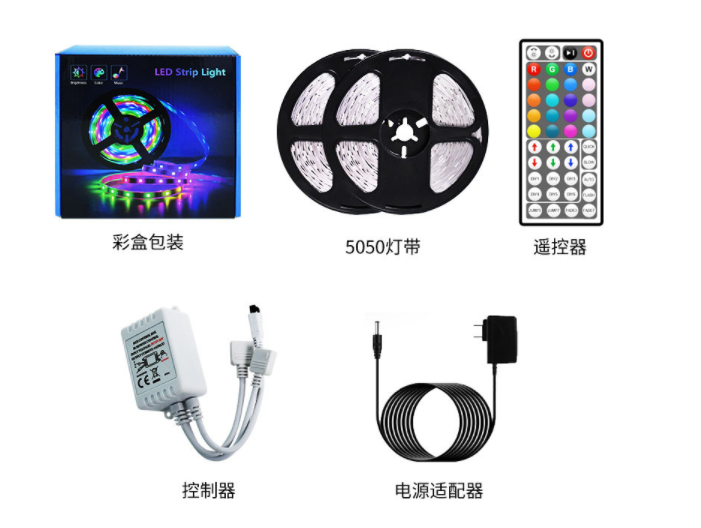

SMD5050 Full Kit Color Changing Flexible LED Strip
|
LED Strip Light |
|
|
Light Type |
IP20/IP65 LED Strip Light kit |
|
Color |
RGB |
|
LED Source Type |
Epistar SMD 5050 high lumen led chips |
|
LED Quantity |
18leds/Meter, 30leds/Meter, 60leds/Meter |
|
Size |
5M /10M/15M/20M LED Light Strip |
|
Package |
30Box/ctn |
|
Technical Parameters |
|
|
View angle |
120° |
|
Working Input Voltage |
12v DC/220v AC |
|
Output power |
36W |
|
Working Tempreture |
-20°C~50°C |
|
Drive Mode |
Contant Current IC Driver |
|
PF>0.95 |
CRI>85 (High CRI) |
|
Brightness |
1800mcd-2200mcd/pcs |
|
Warranty |
2 years |
|
Controller |
|
|
Type |
44Key Remote Controller |
|
Connection mode |
Common Anode(+) |
|
Input/Output |
12v |
|
Max load current |
2A each color |
|
Output |
three CMOS drain-open output |
|
Working Temperature |
-20°C-60°C |
|
Color |
20 Colors |
|
Mode & 8 Light Pattern |
Quick / Slow/ Auto/ Flash/ 7 color fade change/ 3 color fade change/ 7 color jumpy change/ 3 color jumpy change R/G/B increase and decrease control |
|
Remark |
6 DIY keys Please refer to English manual to get detailed operation- 44 keys infrared controller which has 6 keys(DIY keys) for memories the colors what you preferred. |
